Industrial Rugged Metal Entry Number Keypads 4 x 4 Matrix for Access Kiosk

चीन SZ Kehang Technology Development Co., Ltd. प्रमाणपत्र
चीन SZ Kehang Technology Development Co., Ltd. प्रमाणपत्र
The keyboard is what we are looking for. Smaller size with all keys and function. Yes, we have tested it and we are very satisfied with it ! Thanks.

—— Kristina

Your support makes our projects running smoothly. Our end customer is very pleased with the quality. Hope to cooperate soon!

—— Pawan K.

Actually, we have found some supplier of this keypad, but, when connecting, our system appears messy code. You will receive the order this afternoon!

—— Mr. Danton

मैं अब ऑनलाइन चैट कर रहा हूँ

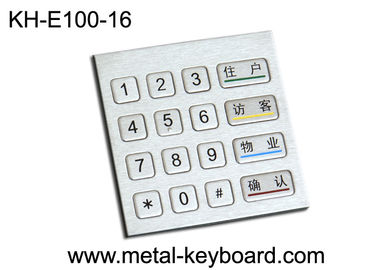

Industrial Rugged Metal Entry Number Keypads 4 x 4 Matrix for Access Kiosk

Industrial Rugged Metal Entry Number Keypads 4 x 4 Matrix for Access Kiosk
Industrial Rugged Metal Entry Number Keypads 4 x 4 Matrix for Access Kiosk

बड़ी छवि :  Industrial Rugged Metal Entry Number Keypads 4 x 4 Matrix for Access Kiosk

उत्पाद विवरण:

Place of Origin: China
ब्रांड नाम: CNKHTECH
प्रमाणन: CE/ROHS/FCC
Model Number: KH-E100-16

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 1pcs
मूल्य: Negotiation
Packaging Details: 2pcs/EPE/inner box, 30boxes/ctn
Delivery Time: 1-2 weeks
Payment Terms: T/T, Paypal
Supply Ability: 5000pcs/month
विस्तृत उत्पाद विवरण
सामग्री: स्टेनलेस स्टील कुंजी: 16 (4x4 डिज़ाइन)
सुरक्षा स्तर: IP65 इंटरफ़ेस: पीएस 2 / यूएसबी
आपरेटिंग तापमान: -20º से C + 60º C उत्पाद का नाम: धातु कीपैड
हाई लाइट:

access control keypad

,

industrial keypad



Rugged Industrial Metal Entry Keypad 4 x 4 Matrix for Access Kiosk



Product Features:


• 16keys metal keypad, by 4 x 4 Layout.

• Custom layout and installation design

• Laser engraved characters for excellent durable.

• USB and PS2 connection are available

• Top metal panel with threaded bolt solution.

• Waterproof ,dust proof, vandal proof.shake-proof





Applications:


•This Metal Keypad is mainly used for unsupervised or semi-supervised positions of varied access applications, such as Info-Kiosk, Internet Kiosk, Check-in Kiosk, Boarding Kiosk, Medical Kiosk, Industrial Control Platform, etc.





MECHANICAL DATA



Material: Super quality SUS304 Brushed stainless steel

Keypad Layout: 4 x 4 design,10 numerical keys and 6 function keys

External keypad: with connector for 2 bars x 4 function keys

Key top style: Flat keys, laser engraved & etched graphics & raised braille on keys are available

Stroke travel: 0.45mm

Switch life: more than 1 million of per key

OS: All windows, Linux, Unix, Mac OSX

N.W.:0.45 KGs





ELECTRICAL DATA



Security: encrypted key and self destruction function when tamper attack,

Sensitive data will be kept for more than 5 years when power off.

Encryption process: data encryption and data decryption, MAC and algorithm, PIN encryption

Supply Voltage:5.0V DC±5%

Current Rating: appr. 30mA

EMC Standard: It is compliance with the council EMC directive 2004/108/EC

EN55022: 2006+A2:2010

EN55024: 1998+A1:2001+A2:2003

Lifespan > 5 years





ENVIRONMENTAL ADAPTABILITY



Operating temperature:-20°C to +60°C

Storage temperature: -30°C to +70°C

Operating RH: 20-95%

Atmospheric pressure: 60-106Kpa.





RELIABILITY



RoHS Compliant, CE and FCC, ESD

Protection Level: IP65(front panel)

Vandal resistant: IK10

Key Lifespan >10 million actuations

MTBF >5,0000H

MTTR <30min
